Key Features:
-

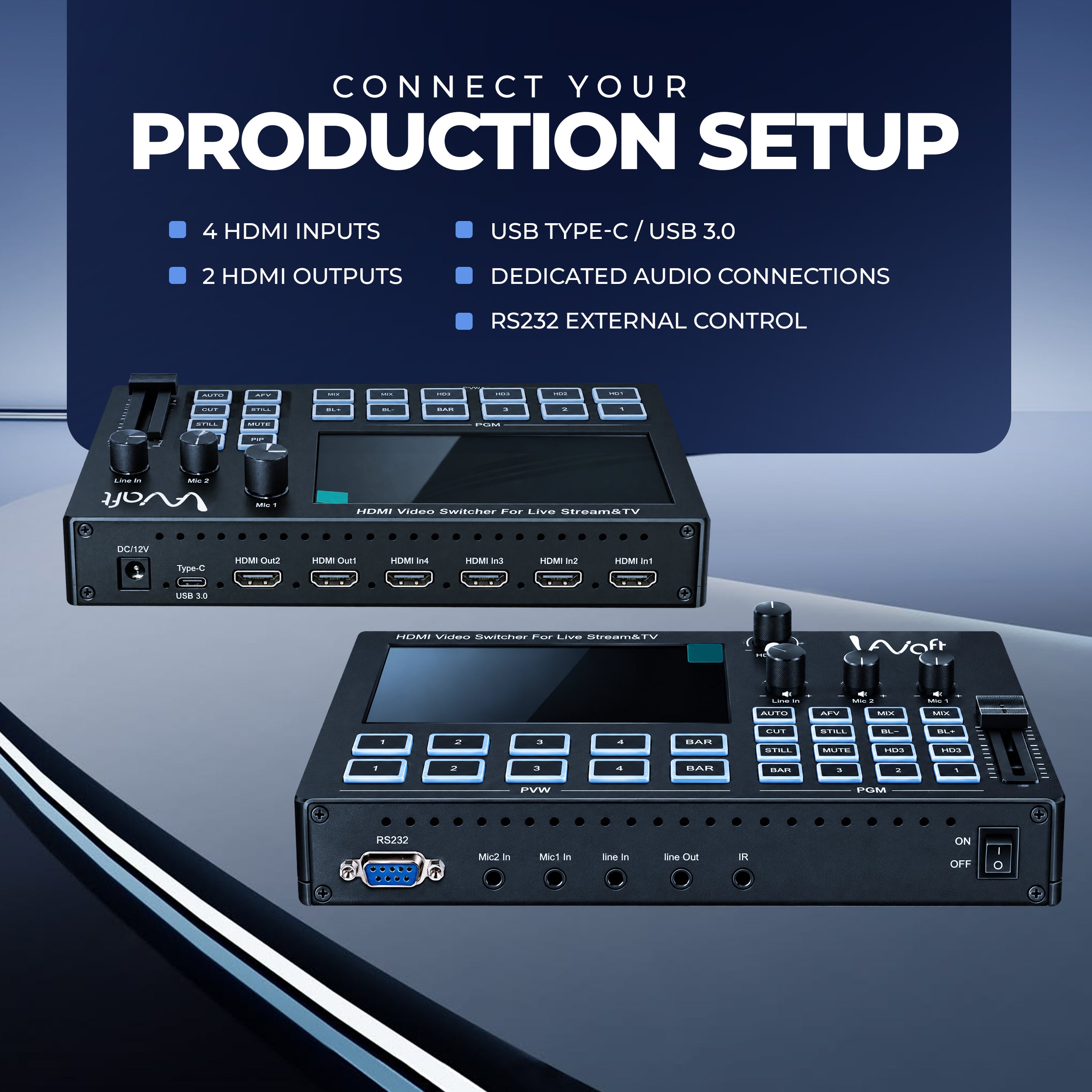

4-Way HDMI Video Switching: Features 4 HDMI inputs and 2 HDMI outputs, allowing you to connect multiple compatible video sources for convenient switching during live streaming, presentations and video production.

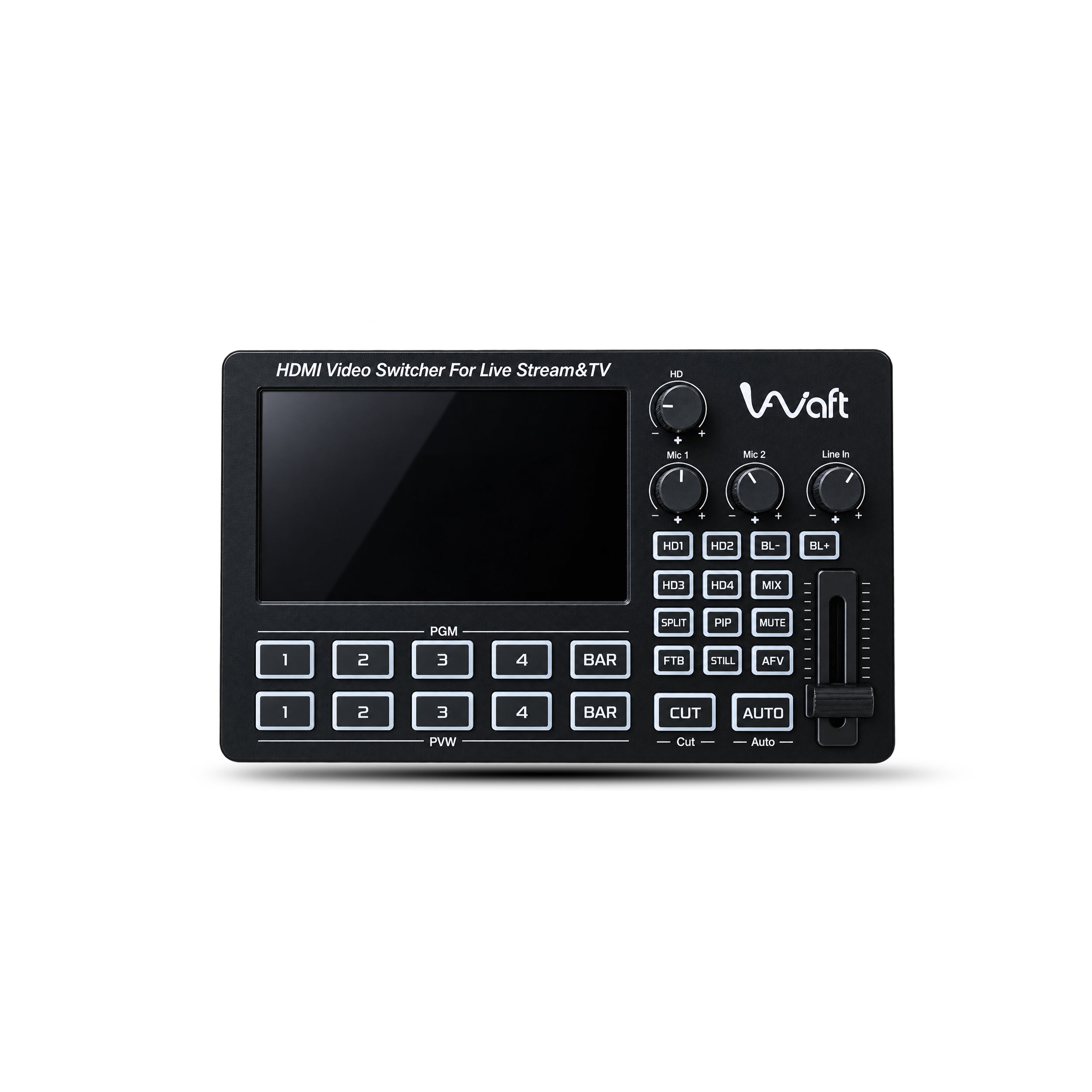

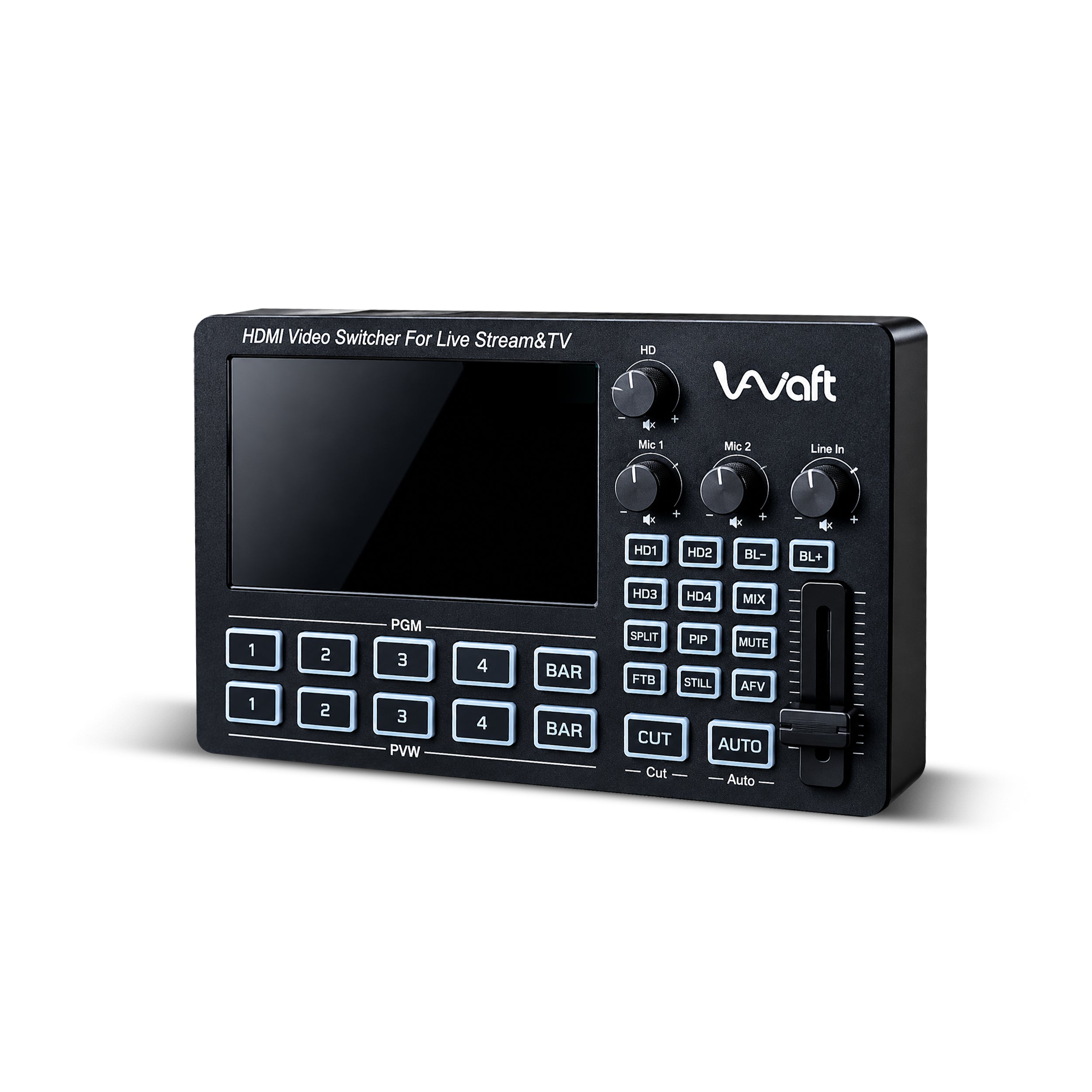

- Built-In 5-Inch IPS Display: The integrated 5-inch screen with 800 x 480 resolution provides real-time video monitoring, helping you preview input signals and monitor output content directly on the device.
-
Full HD 1080p Support: Supports HDMI input and output resolutions up to 1920 x 1080 at 60Hz, delivering clear Full HD video for online teaching, interviews, events and content creation.
-
USB Type-C 3.0 Capture: The USB Type-C 3.0 interface supports video capture and streaming with YUY2 and MJPEG formats and UVC 1.0 compatibility for compatible computers and streaming setups.
-
PiP and Split-Screen Modes: Supports Picture-in-Picture (PiP) and split-screen monitoring, helping users manage multiple video sources for live broadcasts, demonstrations and video production workflows.
-
Flexible Audio Management: Supports embedded HDMI audio and external analog audio input through the MIC/LINE IN port. Audio can be mixed and embedded into HDMI output or routed through the analog output, depending on the selected configuration.
-
Portable Design and Easy Controls: Built with a compact metal body, colour-backlit buttons and adjustable screen backlight brightness. Measures 200 x 130 x 52 mm, weighs 756 g and operates with a DC 12V, 2A power adapter, making it suitable for studio and mobile production setups.
Technical Details
| Brand Name | AIWaft |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | AIWaft Pvt Ltd |
| Item Highlight | 4 HDMI inputs, 2 HDMI outputs, 5-inch IPS preview screen, 1080p 60Hz support, PiP mode and USB-C 3.0 streaming capture |
| Number of Items | 1 |
| Country of Origin | China |
| Importer Contact Information | AIWaft Pvt Ltd, aiwaft20@gmail.com |
| Item Weight Unit of Measure | 250 Grams |
| Item Type Name | Video Mixer |
| Model Number | StreamPro |
| Packer Contact Information | AIWaft Pvt Ltd, aiwaft20@gmail.com |
| Warranty Description | As per the manufacturer policy. |
| Connector Type Used on Cable | HDMI, USB Type-C |
| Compatible Devices | HDMI Cameras, Laptops, Computers, Camcorders, Monitors, TVs, Projectors and Compatible Streaming Devices |
| Power Source | AC Adapter (DC 12V, 2A) |
| Item Dimensions D x W x H | 13D x 20W x 3.5H Centimeters |
