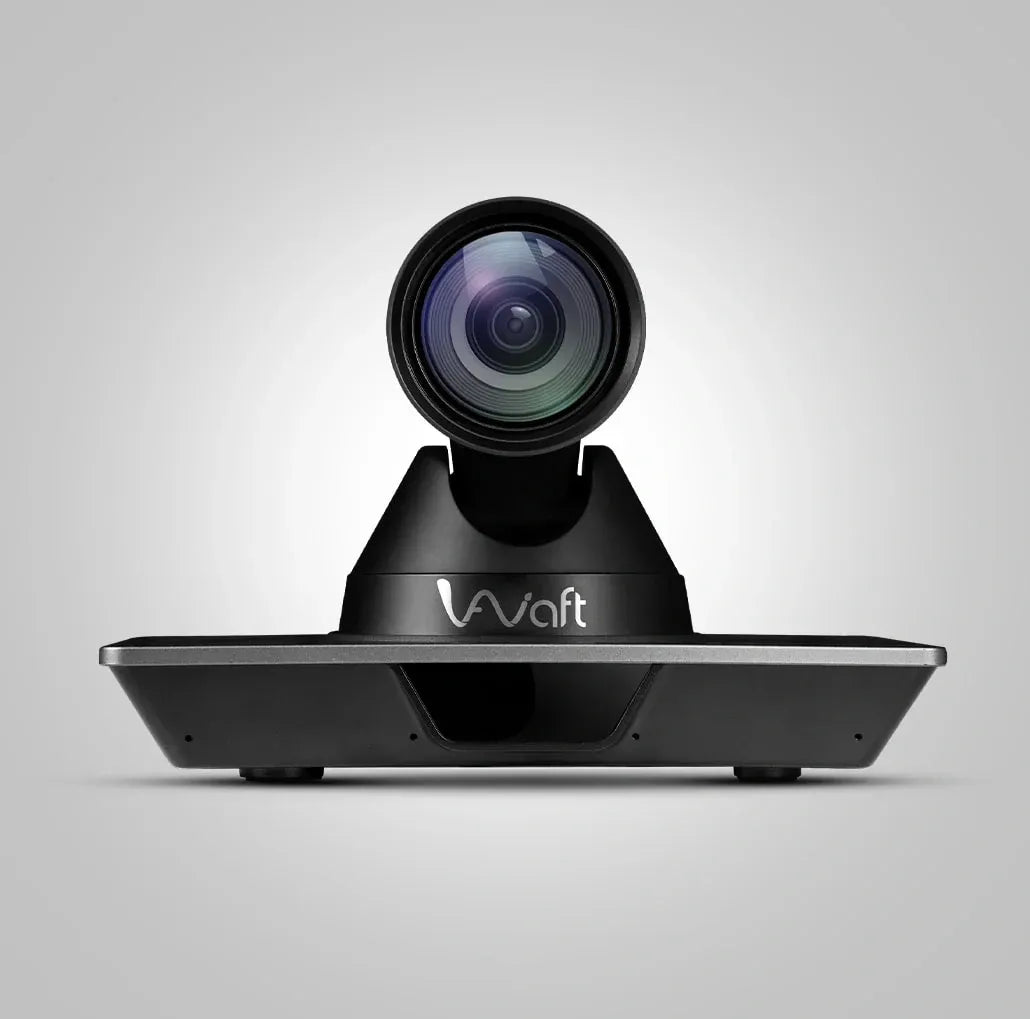

AIWaft 4K PTZ Camera 12X Optical Zoom |

AIWaft 4K PTZ Camera 12X Optical Zoom |

Regular price Rs. 66,101.70
Regular price Rs. 95,000.00 Sale price Rs. 66,101.70
Sale Coming Soon


Get Best Offer Price

Aiwaft 4K PTZ Camera with 16X Digital & 12X Optical Zoom | C412HUL Aiwaft 4K PTZ Camera with 16X Digital & 12X Optical Zoom | C412HUL

With our AIWaft 4k PTZ camera, the content you put up enhances & does justice with the overall quality of the video. This can be operated manually or through automated presets, and the camera also has advanced features such as motion tracking and image stabilization.

S.No Parameter Specifications
1 Model AIWaft – AIW20A1
2 Type AIWaft 4k PTZ Camera
3 Resolution 2160p @ 60fps, 1080P @ 60fps, 720P @ 60fps
4 Video Format H.264 AVC, H.264 SVC, H.265, MJPEG
5 Optical Zoom 12X (f 4.4mm ~ 52.8mm, F1.8 ~ F2.6)
6 Digital Zoom 16X
7 Minimal Illumination 0.05 Lux @ (F1.8, AGC ON)
8 White Balance Automatic, one-click, manual
9 Backlight Compensation Support
10 Video S/N ≥55dB
11 Digital Noise Reduction 2D&3D Digital Noise Reduction
12 Sensor 1 / 2.5”, CMOS, Effective Pixel: 8.51M

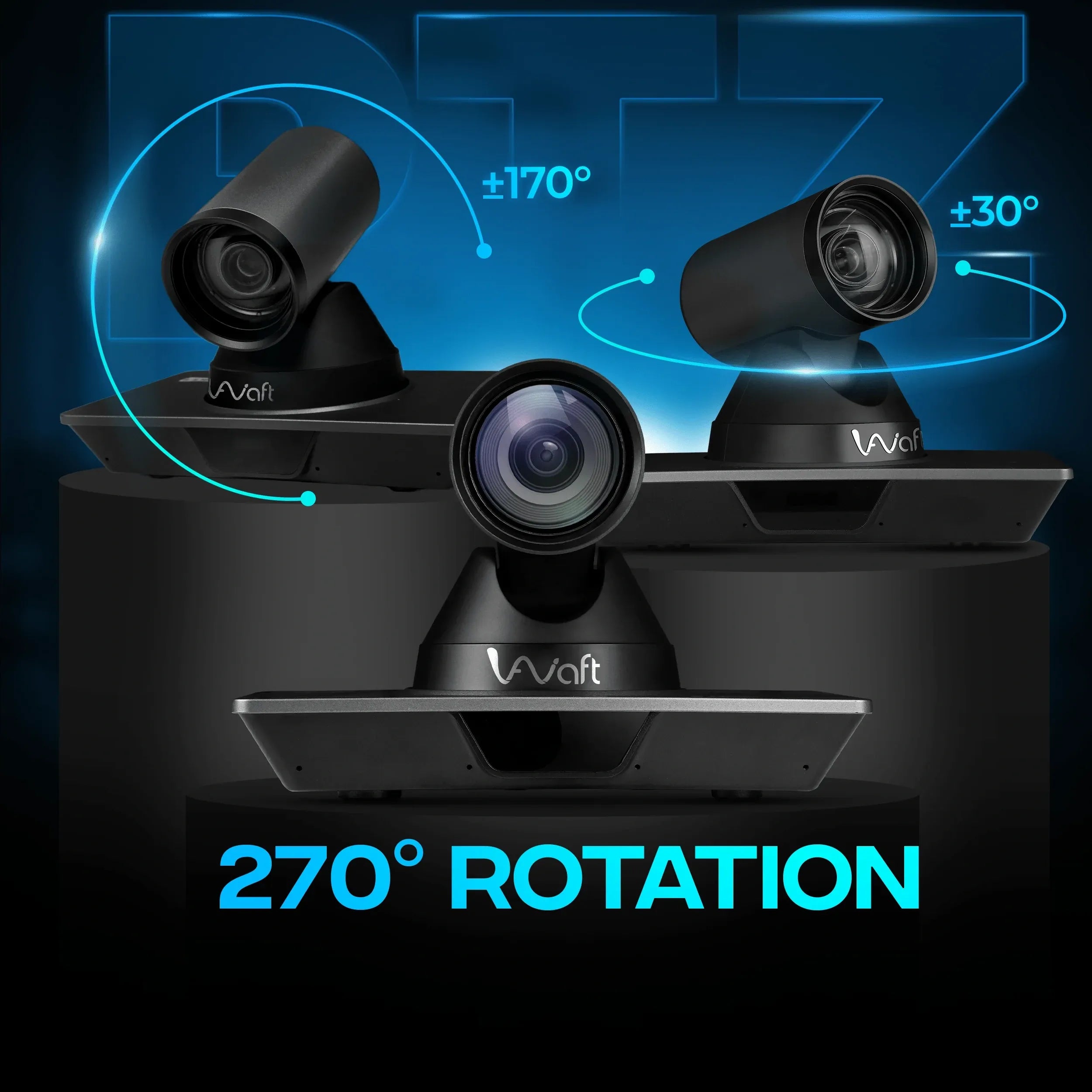

13 PAN Range ±170°
14 Tilt Range -30° ~ +30°
15 Horizontal Angle of View 71 ° ~ 8.2 °
16 Vertical Angle of view 42.7 ° ~ 4.5 °

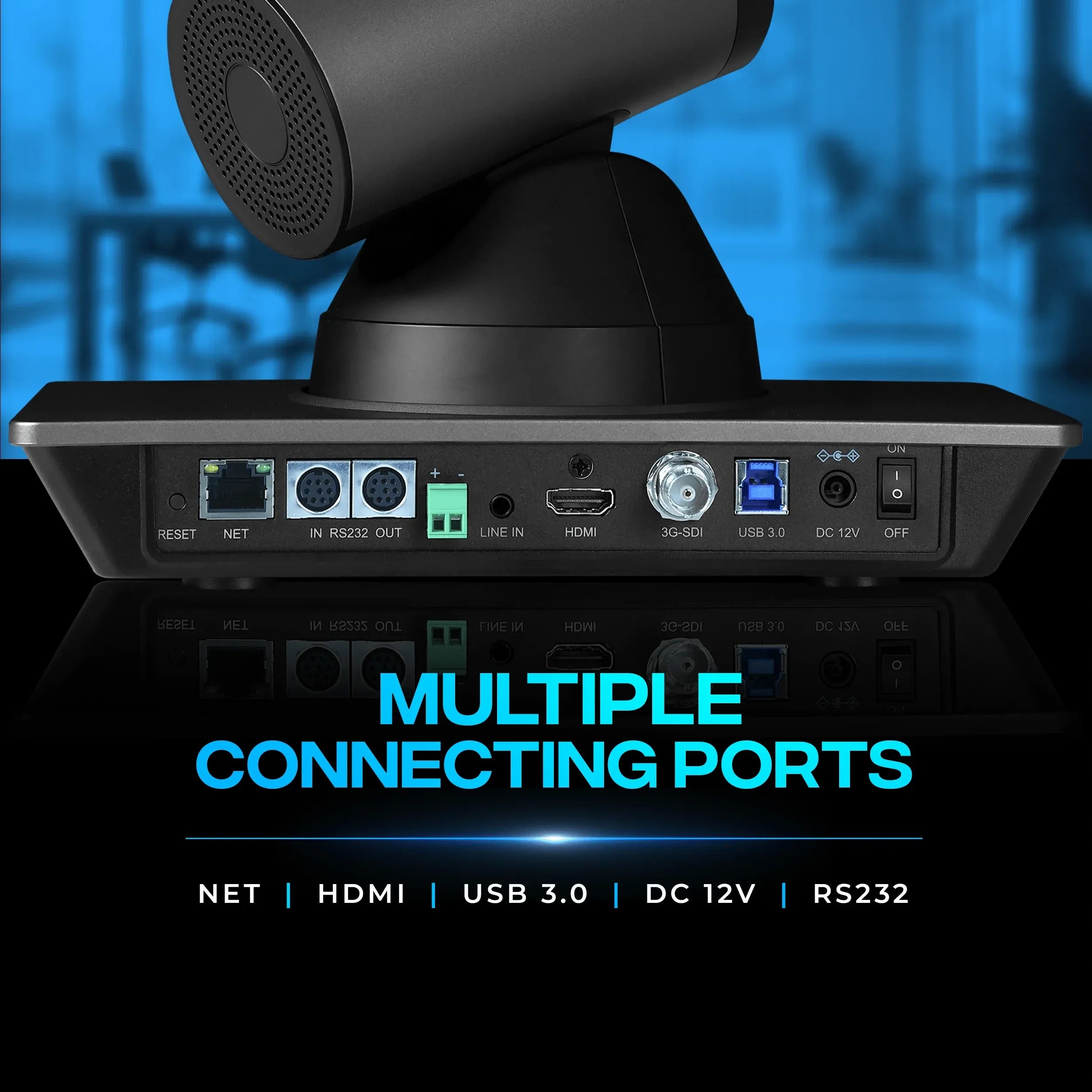

17 Input/Output Interface HDMI, USB 3.0, LAN(RJ-45), RS232, 3G-SDI, Line In
18 Operating System Support of Aiwaft 4k PTZ Camera Windows, Mac OS X, Linux, Android
19 No. of Preset 255 Preset
20 Input Voltage DC 12V
21 Power Consumption 12W (Max)
22 Operating Temperature -10 ° C ~ 40 ° C
23 Dimension (W X H X D) 200mm x 176mm x 130mm
24 Net weight 1.41 Kg
View full details

12X Optical zoom + 16XDigital Zoom

4K PTZ Camera: Unbeatable Features

Full-featured MultiInterface

Full function, HDMI + SDI + IP + USB four-channel
simultaneous outputs, compatibility USB2.0, support compressed video output,
support UVC protocol.

4K Ultra HD

 New generation SONY 1 / 2.5-inch
high-resolution UHD CMOS sensor with a maximum of 8.51 million pixels, which
enables 4K (3840×2160) ultra-high-resolution, high-quality images, downward
compatibility including 1080P, 720P and other resolutions.

12X Optical zoom + 16XDigital Zoom

Use 71° wide-angle, high
quality lenses, support 12x optical zoom, and 16x digital zoom.

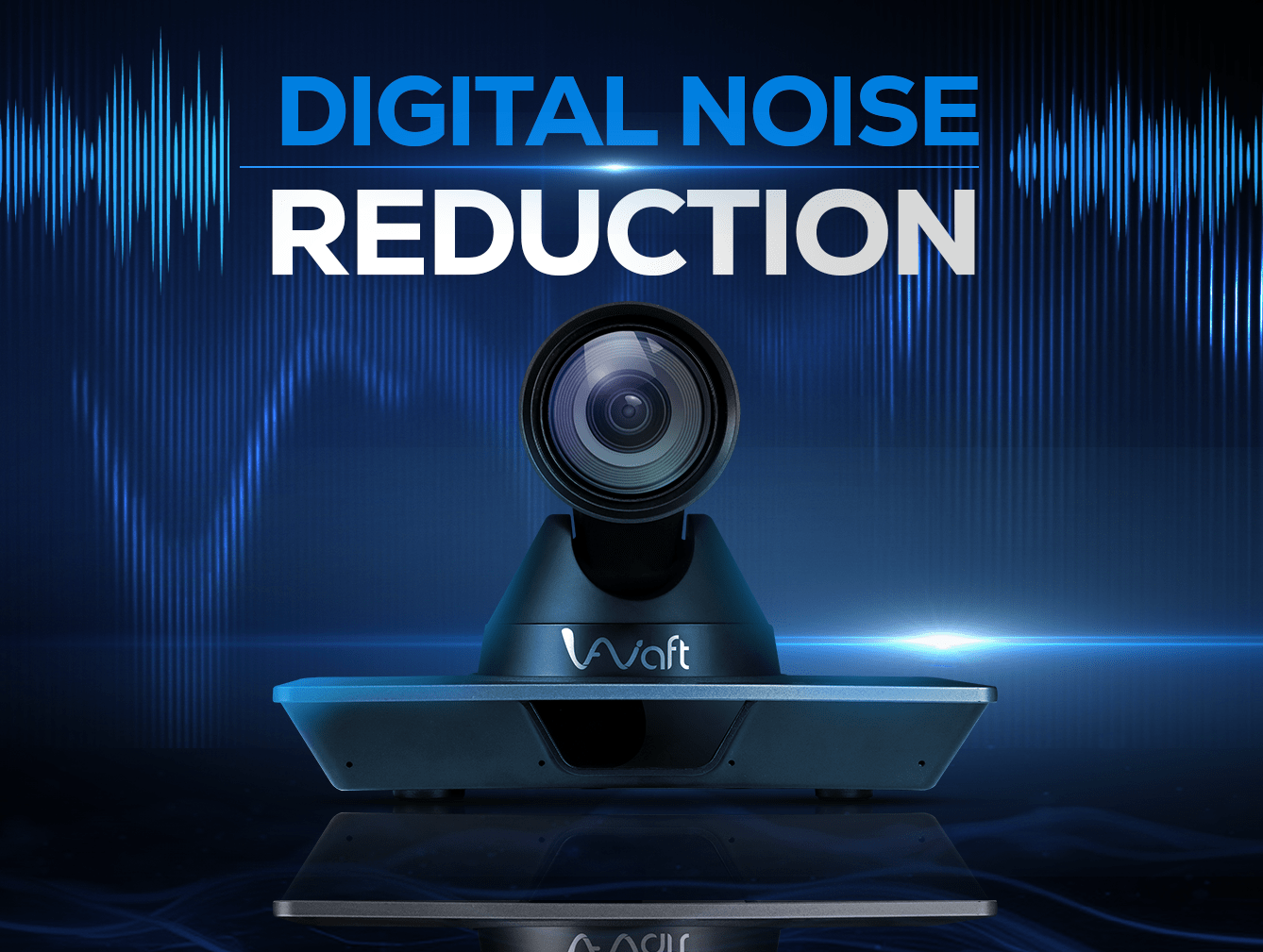

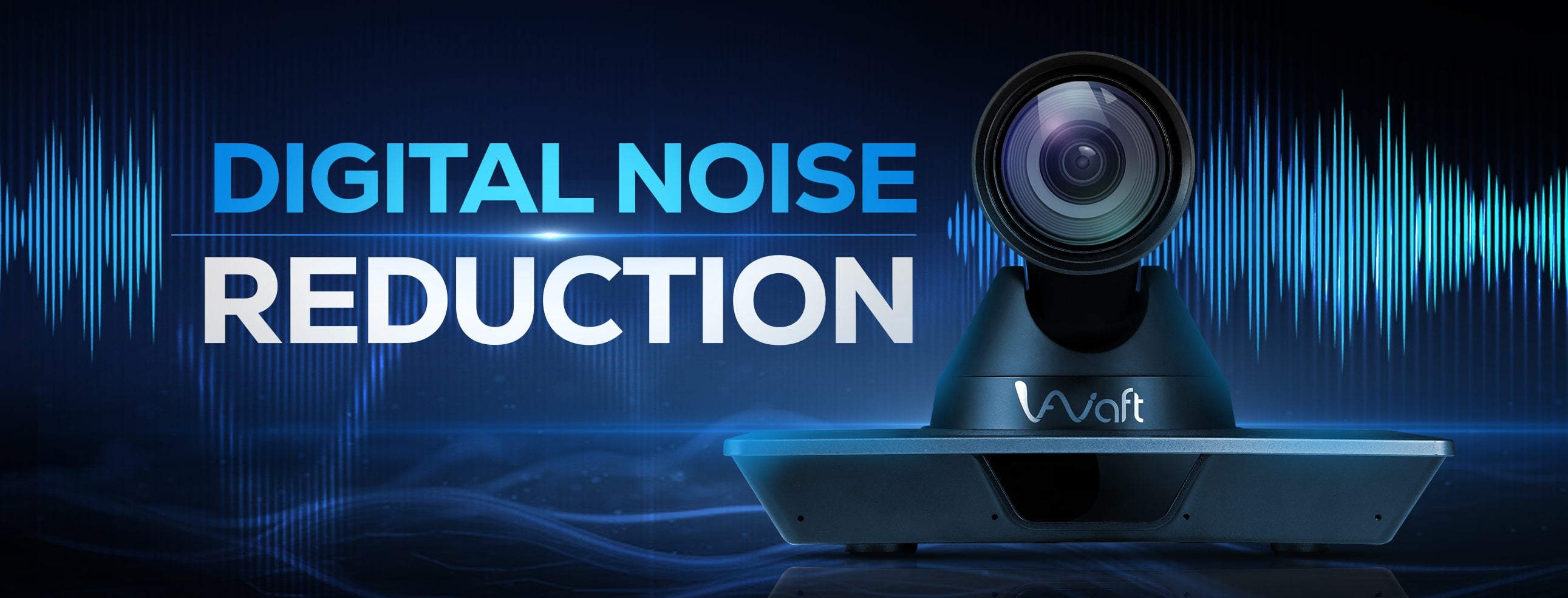

Low illumination

New CMOS image sensor with
ultra-high SNR can effectively reduce the image noise under low illumination.
At the same time, the 2D and 3D noise reduction algorithms are applied to
greatly reduce the noise. Even under ultra-low illumination, the picture is
still Clean And Clear.

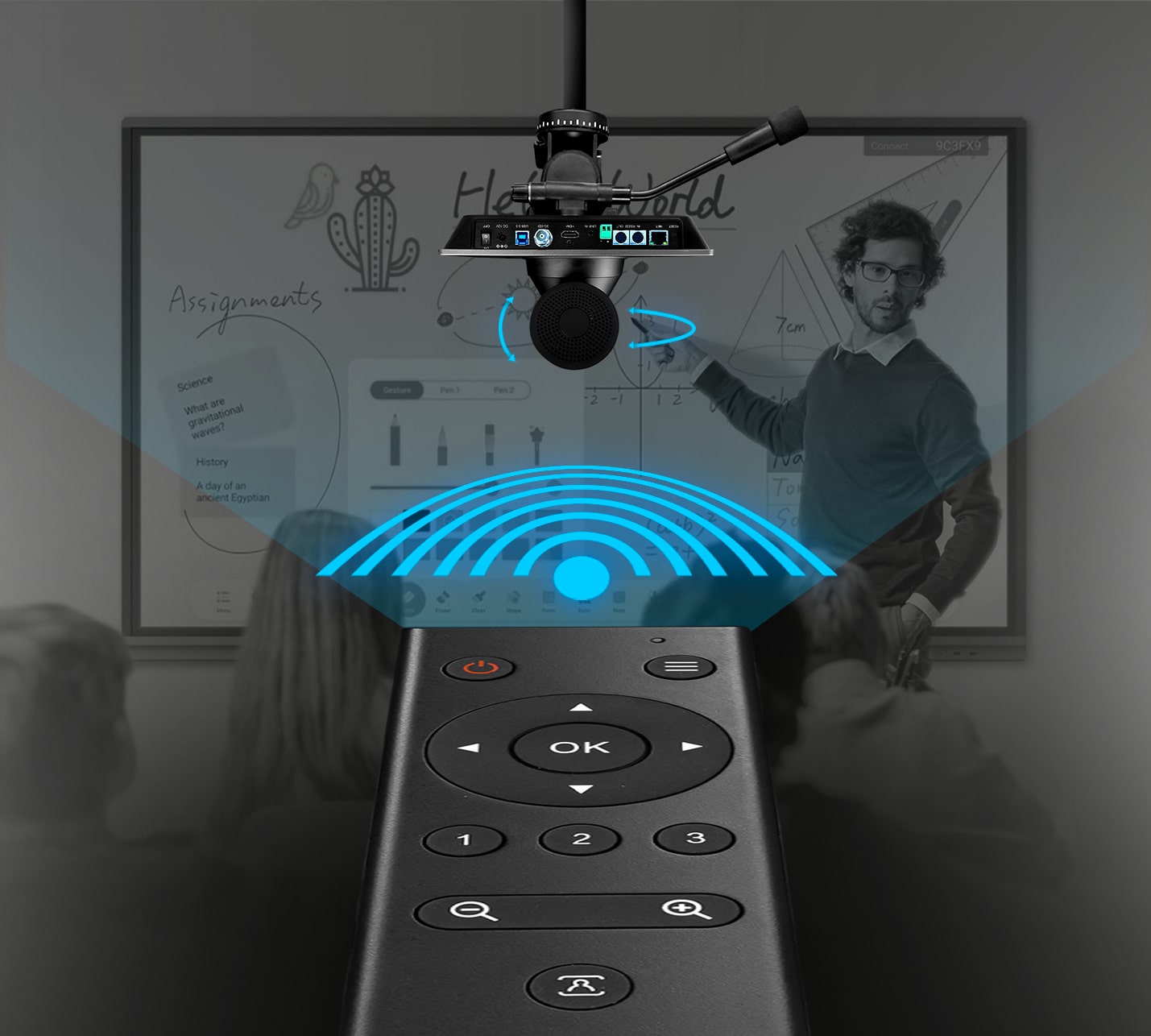

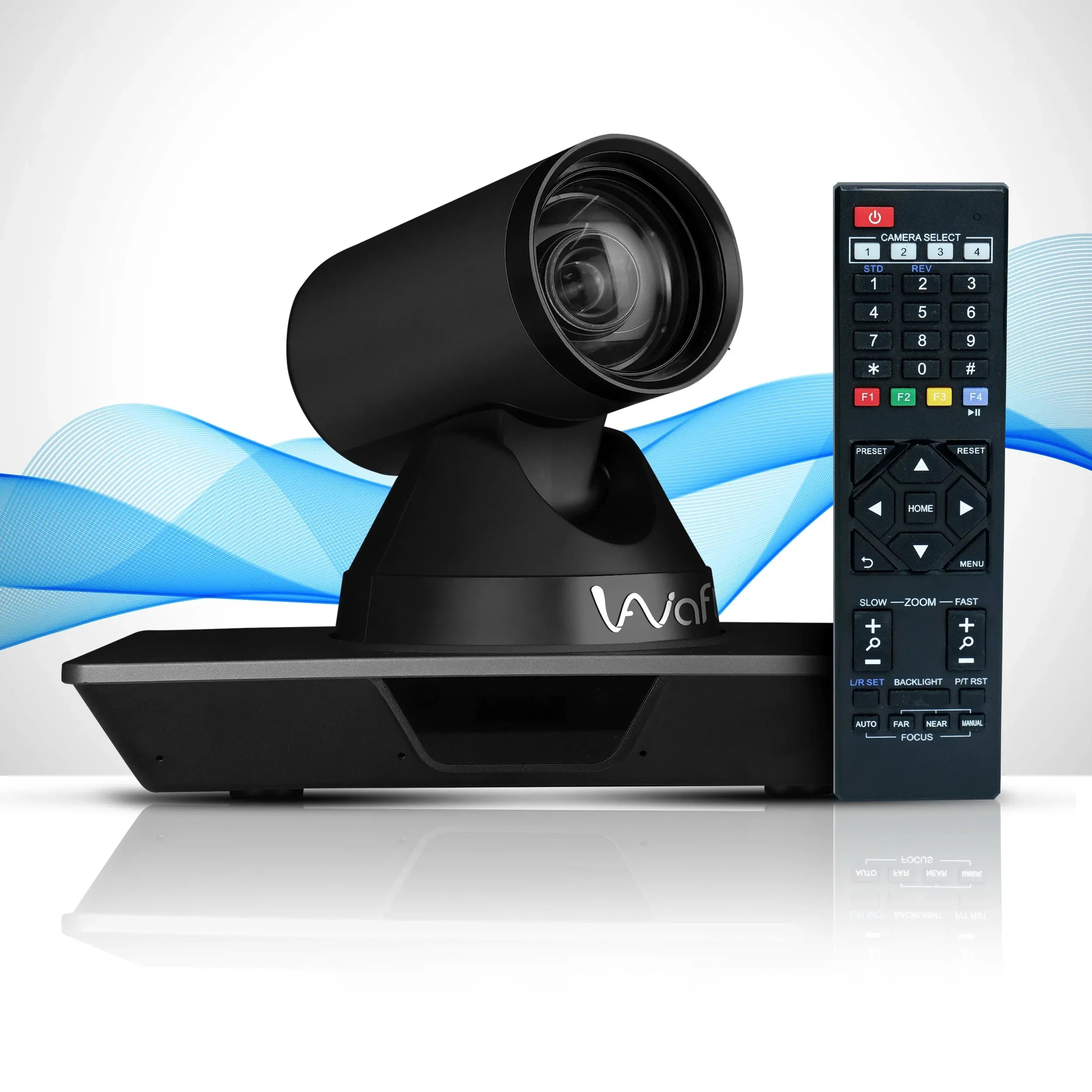

Remote control

RS232, network and USB can be used to control the

H.264 Slice/ H.264 SVCEncoding Support

The output H.264 stream
supports Slice and SVC encoding modes for high-end USB conferencing video

Double Stream

At the same time support
two streams of stream output (YUY2, MJPEG, H.264 two), to reduce the host codec

Let's discuss some prominent features of Aiwaft 4k PTZ Camera that will help you understand why you should purchase oneas opposed to another video camera or DSLR camera.

Characters of Aiwaft 4k PTZ Camera

1.High Resolution

Videos with 4K resolution have four times as many pixels as
those with Full HD, making them extraordinarily clear and detailed. For
educational content, where the quality of the visuals is important, this level
of clarity is especially advantageous. Additionally, an Evota 4K ptz camera
provides the very finest video quality possible when using a digital board for
online instruction.

2. Pan-Tilt-Zoom (PTZ) Functionality

PTZ cameras have remote pan, tilt, and zoom capabilities that let you change the
camera's field of view without moving the camera itself. This function is
excellent for recording active classroom activities.

3. Broad Field of View

Wide-angle lenses on PTZ cameras allow you to capture more of the teaching space, making them
ideal for interactive lectures or demonstrations.

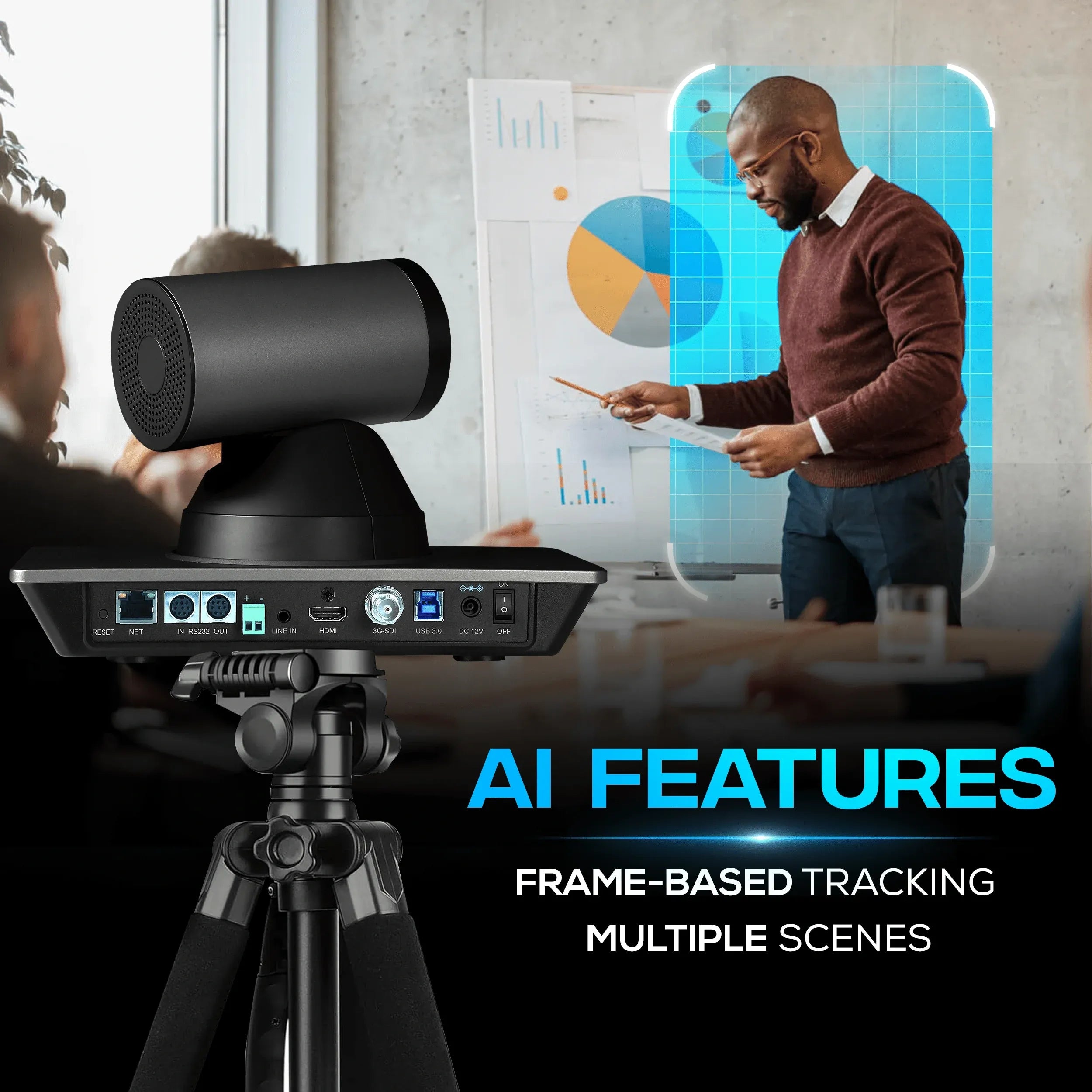

 4. Multiple scene optio

The evota 4K PTZ camera offers a lot of freedom for recording different circumstances while
giving lectures or presenting. Users can quickly and simply film various
perspectives without the need for manual modifications by designating different
scenes to certain buttons, such as recording the interactive panel (scene 1) or
switching to the podium (scene 2).

This function shows to be quite helpful in
educational contexts as it enables teachers to easily switch between recording
modes, improving the overall quality of the content and giving students a more
interesting learning experience. The camera's ability to produce and flip between
numerous scenes makes recording easier and saves time during content creation,
whether you need to focus on interactive content shown on a panel or record a
speaker at the podium.

5. Remote Control and Presets

PTZ cameras allow for remote control of the camera settings, which is useful for lectures
or presentations. To save time and effort while filming, you can also establish
and remember presets for various camera angles.

can now record on their own, eliminating the need for a cameraman.

6. Silent and Smooth Movement:

PTZ cameras are made to move silently and smoothly, minimizing interruptions while filming.

 It is simple to use and has the finest default setting, so there is no need to
adjust it every time.

7. Versatility:

4K PTZ cameras are a versatile investment because they can be utilized in a variety of settings,
such as online instruction, hybrid classrooms, webinars, and video

8. Improved Video Streaming

4K video offers higher-quality streaming options, which improves your audience's
watching experience during live events or on-demand media.

9. Integration and Control Options:

PTZ cameras frequently have RS-232 or IP control integration options, enabling you
to incorporate them into current AV systems and operate them with compatible

Contact form

Transform Your Dream Studio with India's Studio Provider Company.

Edusqaudz is a company that has excelled in the education domain by providing one-stop solutions for various smart classroom online coaching and schools. From interactive flat panels to powerful 4k PTZ cameras and from setting up their dream studio to ensuring sound proficiency, Edusqaudz has become a go-to solution for every audio education need, ranging from the smallest to the largest. This is why it is renowned as India's best studio setup provider company.

FAQs for a Aiwaft 4K PTZ Camera

What is included with the 4K PTZ Camera?

The 4K PTZ Camera comes with a comprehensive package that includes the following items:

  • Charger: For powering the camera during operation.
  • Remote Control: Enables convenient control over camera settings and functions, especially useful for live classes and presentations.
  • USB Cable: Facilitates seamless connectivity between the camera and your system, ensuring smooth data transfer and control.

What advantages does the 4K PTZ Camera offer over a DSLR?

The 4K PTZ Camera boasts several advantages that set it apart from a DSLR:

  1. Pan, Tilt, and Zoom (PTZ) Functionality: The 4K PTZ Camera is designed with motorized pan, tilt, and zoom capabilities. Unlike a DSLR, which requires manual adjustments, the PTZ camera allows for remote control of its movement, enabling you to capture a wider range of angles and shots effortlessly.
  2. Remote Operation: With the 4K PTZ Camera, you can conveniently control all functions using a remote. This feature is particularly beneficial for live events, lectures, or video conferencing, as it eliminates the need to physically handle the camera during critical moments.
  3. Versatility: The 4K PTZ Camera excels in versatility, making it suitable for various applications like live streaming, video production, surveillance, and remote monitoring. On the other hand, DSLRs are primarily optimized for photography, and while they can record videos, they lack the dynamic PTZ capabilities of the dedicated PTZ camera.
  4. 4K Resolution: The PTZ Camera supports 4K resolution, delivering stunningly detailed and sharp visuals. Although some DSLRs also offer 4K recording, the PTZ camera's motorized functions and autofocus are optimized for smooth video performance, making it superior for video-related tasks.

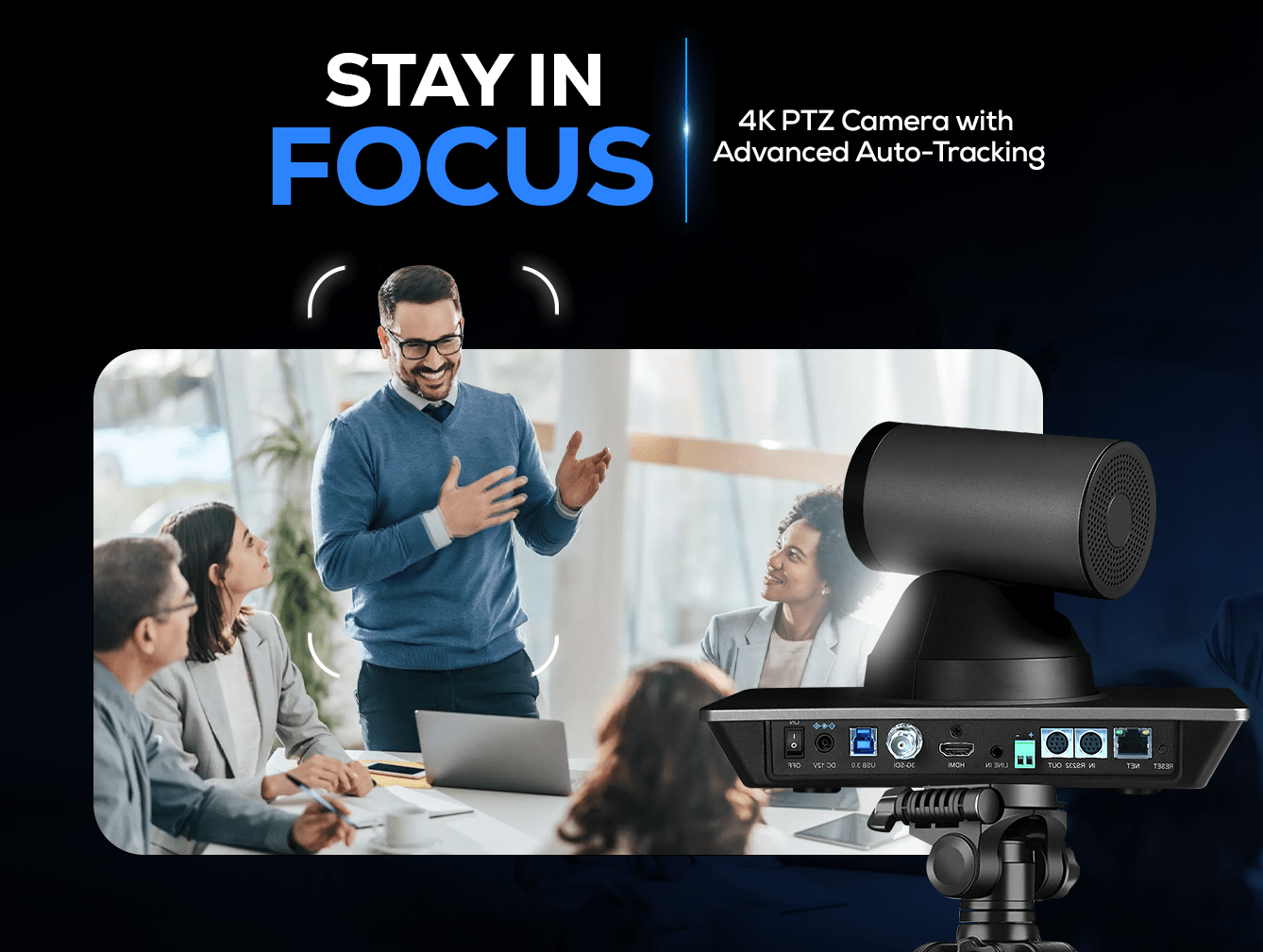

  5. Constant Tracking: The PTZ Camera often comes with advanced tracking features, allowing it to automatically follow subjects or motion in the frame. This feature ensures that the subject remains in focus and centered, making it ideal for live events or video productions where subjects are continuously moving.
  6. Quiet Operation: The PTZ Camera is engineered to operate quietly, which is crucial for recording video with clear audio in noise-sensitive environments. DSLRs, in comparison, may produce noticeable mechanical noise during operation, potentially interfering with audio quality.

In conclusion, the 4K PTZ Camera's combination of motorized PTZ functionality, remote control, versatility, 4K resolution, advanced tracking, and quiet operation makes it an excellent choice for various video-centric applications, giving it an edge over traditional DSLRs primarily designed for photography.

What is the maximum recording duration supported by the 4K PTZ Camera?

The 4K PTZ Camera does not impose any specific limitations on recording duration. Users have reported using this camera extensively for extended periods without encountering any issues. Notably, many renowned online teachers working in prominent coaching institutes have successfully conducted daily classes for 10 to 15 hours over several years using this camera.

It is essential to note that the camera's continuous recording capabilities are often subject to factors like available storage space, power supply, and the camera's operational temperature. However, under normal operating conditions and with sufficient storage capacity, the 4K PTZ Camera can be relied upon for prolonged recording sessions, making it an excellent choice for various professional applications.

Is the 4K PTZ Camera suitable for a hybrid teaching setup?

Absolutely! The 4K PTZ Camera is specifically designed to cater to hybrid teaching environments. Its versatile features make it an ideal choice for seamlessly conducting classes both online and offline.

The camera's compact design allows for easy mounting, making it convenient to position and adjust for capturing your teaching sessions effectively. With the assistance of a remote control, you can effortlessly control the camera's movements and settings, providing you with the flexibility to engage with students in both the physical classroom and those attending remotely.

By utilizing the 4K PTZ Camera in a hybrid setup, you can enhance the overall learning experience and create a more dynamic and interactive environment for all students, regardless of their physical presence in the classroom.

How do I install the 4K PTZ Camera?

Installing the 4K PTZ Camera is a straightforward process that offers flexibility in various setups:

For Hybrid Setup:

  1. Hang the Camera on Stand: In a hybrid teaching environment, simply position the camera on the stand that comes excluded with the camera package. The stand provides a stable base for the camera and allows you to adjust its angle to suit your needs during both online and offline teaching sessions.

For Conference Room Setup:

  1. Freestanding Placement: In a conference room setting, you have the option to place the camera on a flat surface, such as a table or shelf, to achieve the desired camera angle and coverage.
  2. Wall Mount Using Monopod: To achieve a more versatile and strategic camera placement, utilize a monopod to hang the 4K PTZ Camera on the wall or any other suitable location in the conference room. This allows you to maximize the camera's field of view and capture the entire meeting area effectively.

Regardless of the setup you choose, the 4K PTZ Camera's easy installation process ensures that you can quickly adapt it to your specific requirements, whether for teaching, conferencing, or any other professional application.

What is the camera quality of this 4K PTZ Camera?

For better understanding watch this video - Click Here
The 4K PTZ Camera offers exceptional camera quality, characterized by sharp and vivid visuals with accurate color representation. Its 4K resolution ensures crystal-clear images, allowing you to capture and display fine details in high definition.

One of the camera's standout features is its ability to adjust color tones effortlessly using the remote control. This flexibility empowers users, especially during teaching sessions, to optimize the camera's color settings according to their preferences and environmental lighting conditions, ensuring the best possible image output.

To experience the impressive camera quality firsthand, we invite you to watch the video demonstration linked below. Witness the camera's capabilities and witness the level of visual excellence it can bring to various professional applications.

What kind of after-sale services does the company offer?

The company is committed to providing excellent after-sale services to ensure customer satisfaction and support. Some of the key after-sale services offered by the company include:

  1. Technical Support: The company offers technical assistance to address any issues or queries related to the 4K PTZ Camera's operation, setup, or troubleshooting. Customers can reach out to the company's support team for prompt and knowledgeable guidance.
  2. Warranty Coverage: The 4K PTZ Camera is backed by a warranty provided by the company. The specific terms and duration of the warranty may vary, and it typically covers manufacturing defects and certain hardware components. Customers can seek repairs or replacements for eligible products within the warranty period.
  3. Repair Services: In case of any camera malfunctions or damages, the company provides repair services. Skilled technicians can diagnose and repair the camera to restore it to optimal functioning(T&C Apply).
  4. Spare Parts Availability: The company ensures the availability of genuine spare parts, enabling efficient and authentic replacements during repairs, if necessary.
  5. Software Updates: As technology evolves, the company may release software updates to enhance camera performance and add new features. Customers are typically provided with instructions on how to install and benefit from these updates.
  6. Customer Support Channels: The company offers multiple communication channels, such as phone, email, or online support, to assist customers with their queries or concerns effectively.

The after-sale services provided by the company aim to maintain a positive customer experience beyond the purchase, ensuring that customers receive the necessary assistance and solutions to fully enjoy and optimize the capabilities of the 4K PTZ Camera.
