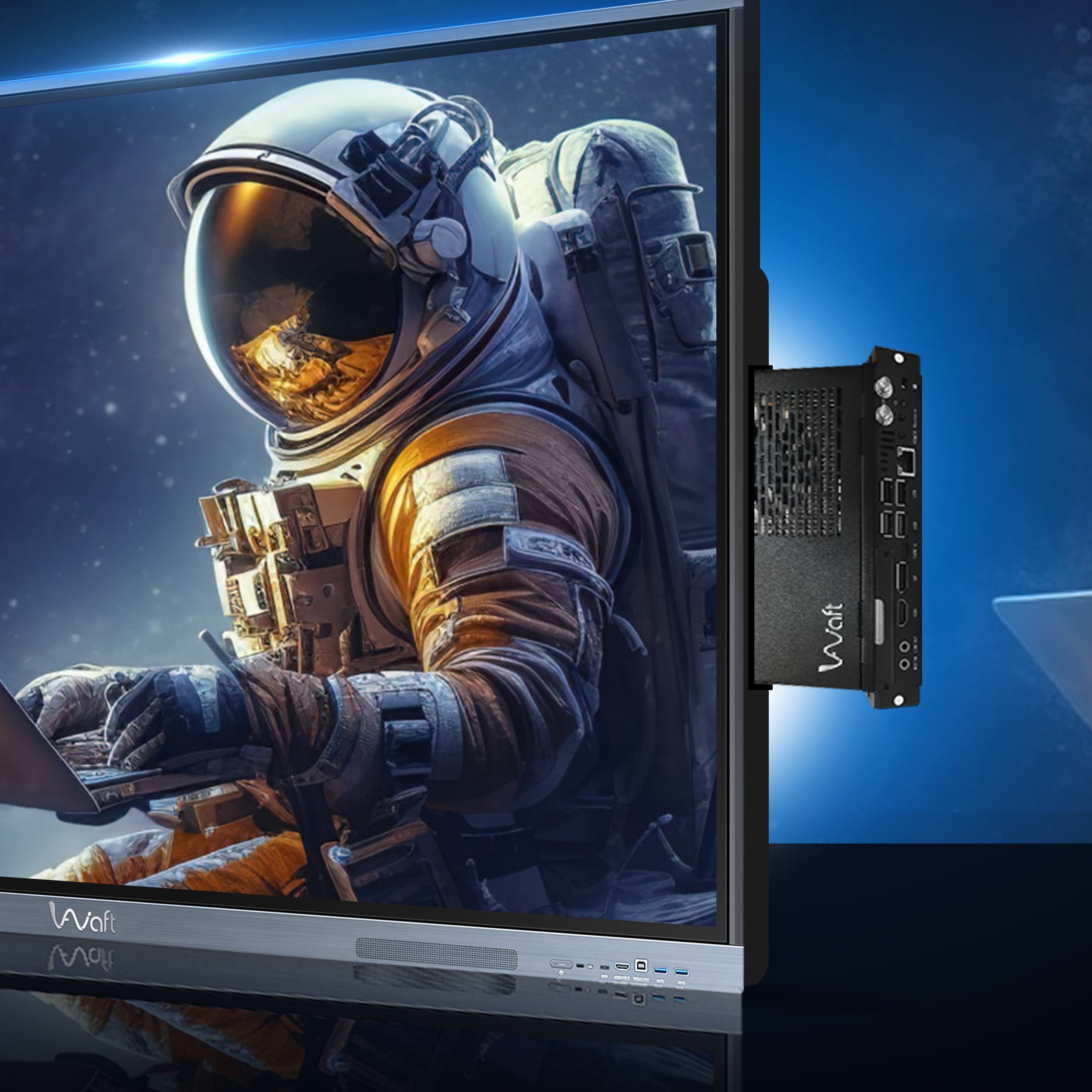

The AIWaft OPS SRX900 is a powerful upgrade module designed for interactive flat panel displays, featuring 12th Gen Intel i5/i7 processors for fast performance and stunning 4K60Hz visuals. With extensive connectivity options and advanced security features, it is ideal for educational, business, and presentation environments.
Features of the AIWaft OPS SRX900 Upgrade Module
- Powerful Processing: 12th Gen i5/i7 processors ensure fast performance for interactive displays.
- Stunning Graphics: IC Iris-Xe delivers HD visuals with vibrant clarity.
- Display Support: HDMI/DP/Type-C ports enable 4K60Hz dual and triple display options.
- Advanced Connectivity: HDMI 2.0, DP 1.4, and JAE 80PIN offer versatile device compatibility.
- Expandable Memory: Supports up to 64GB DDR4 and 1TB storage via NVMe & SATA protocols.
- Enhanced Security: TPM2.0 and vPro ensure robust data protection.

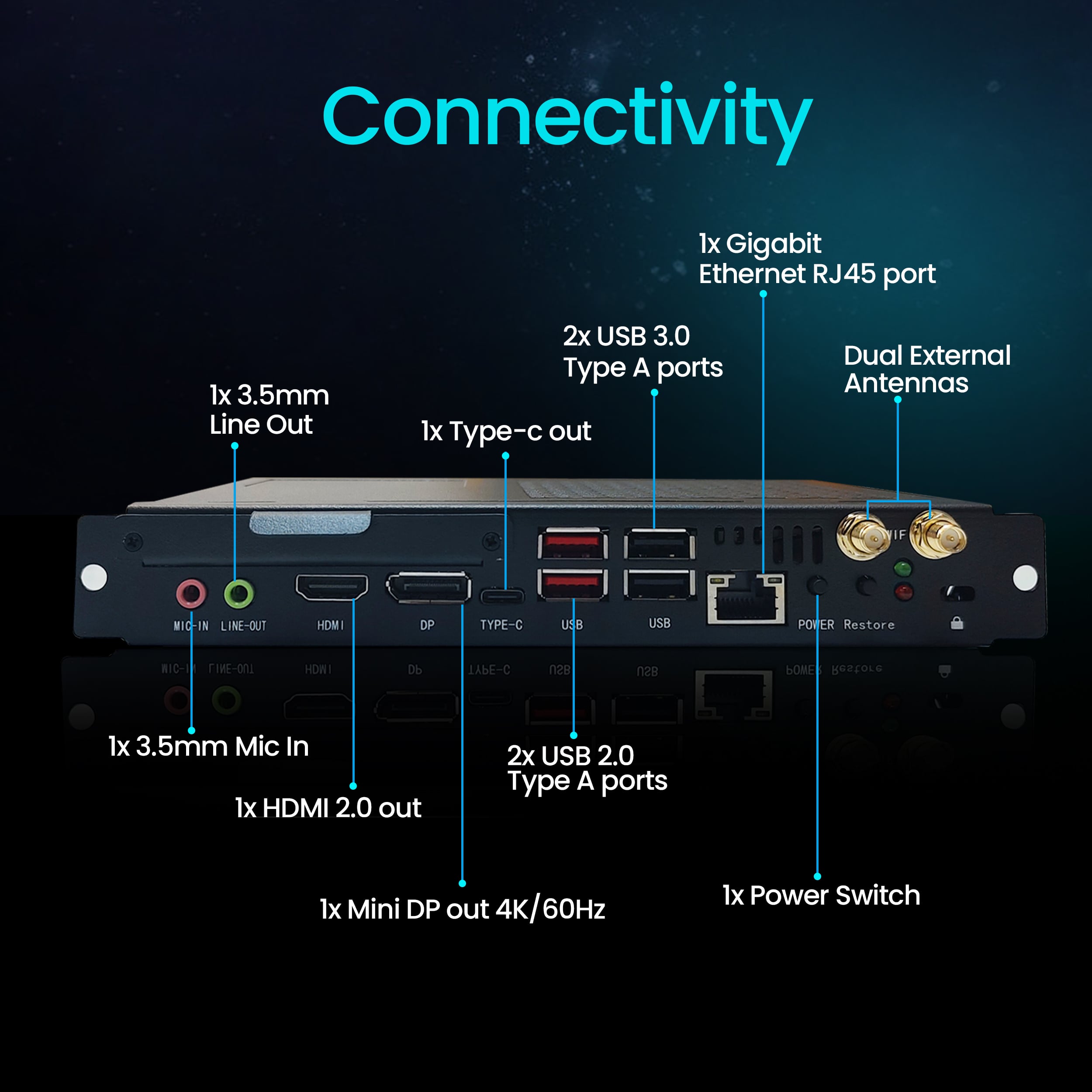

- Comprehensive Ports: Includes USB 3.0, RJ45, Type-C, and more for flexible peripheral connections.
- High-Speed Networking: Intel 2.5G Ethernet and WiFi+BT for fast, reliable connections.
- Compact Design: Measures 118x180x30 mm, weighing 1.2 kg for easy installation.
- OS Compatibility: Supports Windows 8/10/11 and Linux for diverse applications.
Technical Details
Brand | AIWaft |
---|---|
Manufacturer | AIWaft Pvt Ltd, AIWaft Pvt Ltd |
Model | SRX900 |
Model Year | 2024 |
Operating System | Linux, Windows 8, Windows 11, Windows 10 |
CPU Speed | 3.3 GHz |
Graphics Card Description | Integrated |
Graphics Coprocessor | Intel Iris Xe Graphics |
Memory Storage Capacity | 1 TB |
Memory Slots Available | 2 x SO-DIMM DDR4 slots for expandable RAM. |
Specific Uses For Product | The AIWaft OPS is ideal for upgrading interactive flat panel displays with advanced computing power, 4K video output, and extensive connectivity options, making it perfect for educational, business, and presentation environments. |
Screen Size | 86 Inches |
RAM Memory Installed Size | 8 GB |
Product Dimensions | 18 x 11.9 x 3 cm; 1.2 kg |
RAM memory maximum size | 64 GB |
Ram Memory Technology | DDR4 |
Computer Memory Type | DDR4 SDRAM |
Hard Disk Description | SSD |
Processor Brand | Intel |
Processor Count | 1 |
Processor model number | Intel® Core™ i5-1235U / i5-1245U / i7-1255U / i7-1265U |
Hardware Interface | Bluetooth, AV Port, DisplayPort, USB 3.0 Type C, HDMI, USB 3.0, USB 2.0 |
Graphics Card Ram Size | 8 GB |
Resolution | 3840 x 2160 |
Compatible Devices | Interactive Flat Panel Displays., Monitors and Screens |
Special Features | 12th Gen Intel Processor, Dual/Triple Display, TPM 2.0 Security, 4K60Hz Display Support, Expandable Storage |
Mounting Hardware | Power Cable: Connects the power adapter to a standard outlet., Mounting Brackets: For securing the module to compatible displays (if applicable)., Power Adapter: 19V/4.7A power supply with a barrel connector., AIWaft OPS Module: The main unit with integrated processing and connectivity features. |
Number of items | 1 |
Display Type | LED |
Aspect Ratio | 16:9 |
Video Output | The AIWaft OPS provides the following video output options: 1 x HDMI 2.0 (supports 4K/60Hz) 1 x DisplayPort (DP) 1.4 1 x Type-C (supports video transmission) |
Video output interface | DisplayPort (DP) 1.4, HDMI 2.0 (supports 4K/60Hz), Type-C (supports video transmission) |
Wireless Type | Bluetooth, 802.11ax, 802.11ac |
Total USB ports | 4 |
Keyboard Description | The AIWaft OPS module itself does not include a keyboard. It is designed to be connected to interactive flat panel displays and can support external keyboards as part of its overall setup, depending on user requirements and system configuration. |
Connector Type | Ethernet (via Intel I226-LM 2.5G Ethernet), Bluetooth (via M.2 2230 slot for WiFi + BT), DisplayPort (DP) (1 x DP 1.4) / Type-C (for USB 3.0 + video transmission), WiFi (via M.2 2230 slot for WiFi + BT), USB (2 x USB 3.0, 2 x USB 2.0) / HDMI (1 x HDMI 2.0) |
Country of Origin | India |
Item Weight | 1 kg 200 g |
ASIN | B0D9HW4YD1 |
Date First Available | 15 July 2024 |
Packer | AIWaft Pvt Ltd |
Net Quantity | 1.00 count |
Generic Name | AIWaft OPS SRX900 |
