Introduction

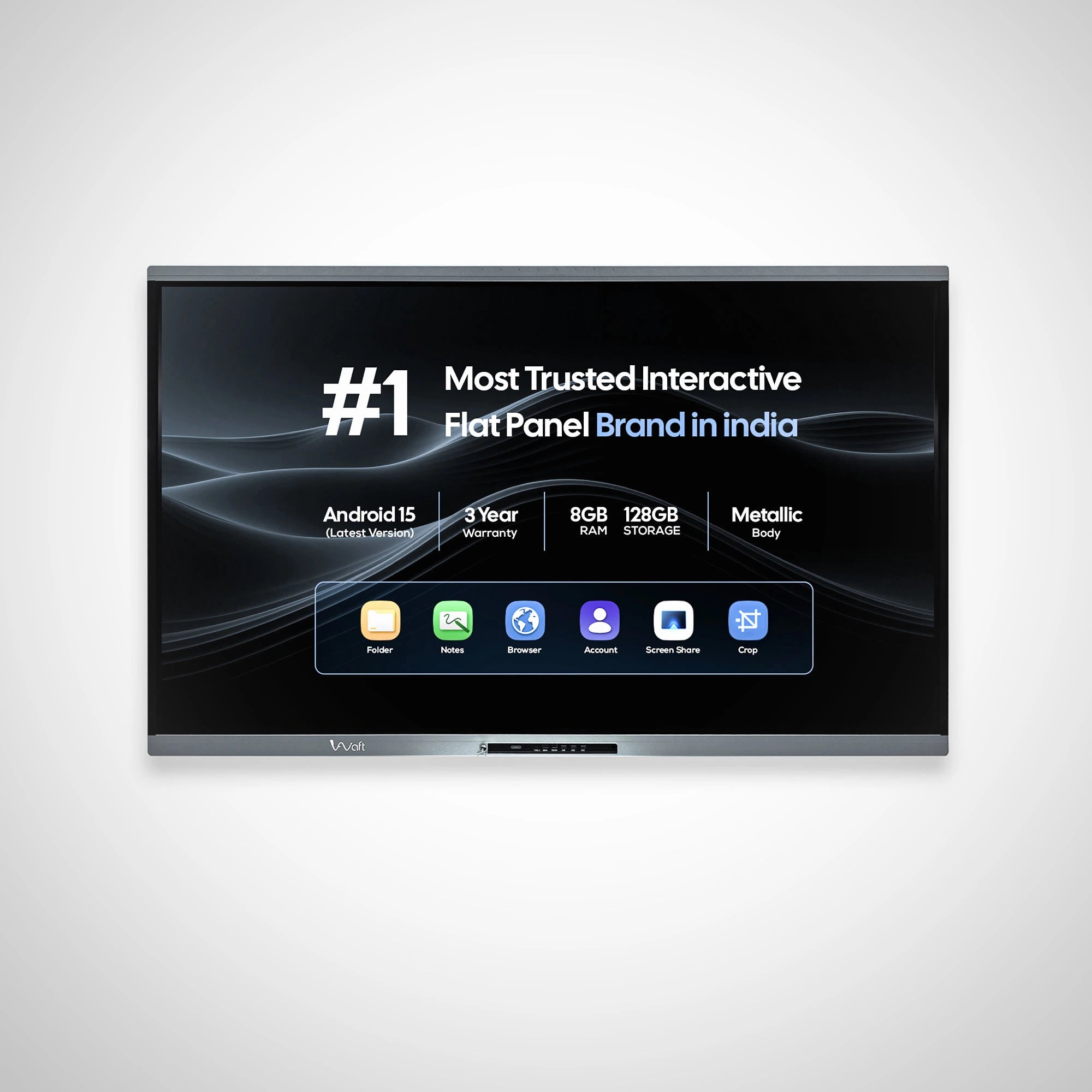

AIWaft 75 Inch Interactive Flat Panel Display is a smart touch display designed for education, corporate meetings, and training environments. With a dual operating system (Android 15.0), 4K Ultra-HD resolution, and advanced multi-touch technology, it delivers smooth performance, clear visuals, and seamless collaboration—making it a complete all-in-one Smart board solution.
Key Features

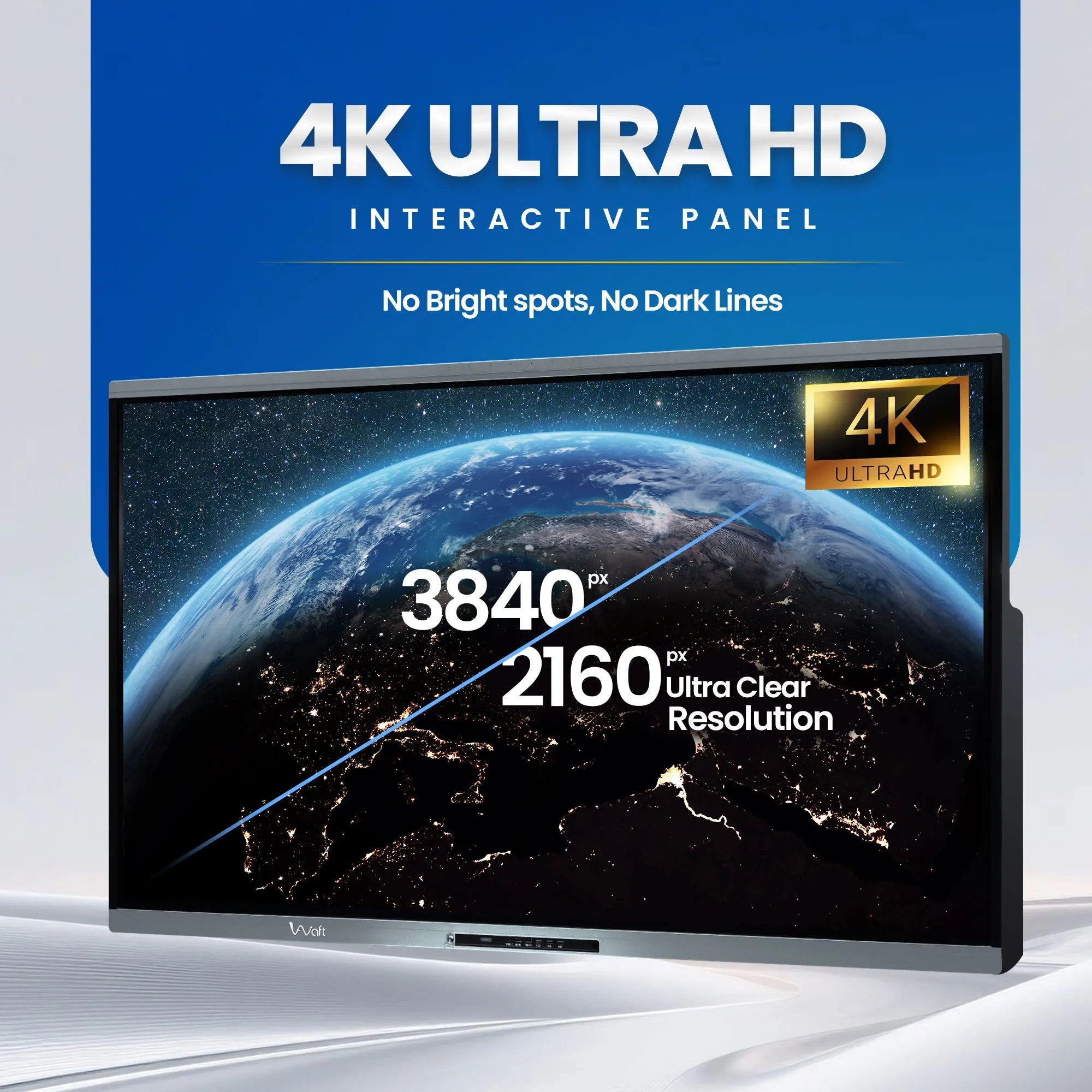

- 4K Ultra HD Display: Experience stunning clarity and vibrant detail.
- Android 15: Latest OS ensuring top performance and security.
- Smart Write: Intelligent note-taking for boosted productivity.
- Optical Touch Technology: Ultra-responsive touch with advanced optical sensors.
- Front Loudspeaker: Delivers rich, immersive sound.
- orks on Windows, Android, Web: Seamlessly integrates across multiple platforms.
Technical Details
| Brand | AIWaft |
|---|---|
| Size | 75 Inch |
| Panel Type | VA |
| Response Time | 6.5ms |
| Aspect Ratio | 16:9 |
| Display Area | 1650.24(H) × 928.26(V) mm |
| Pixel Pitch | 0.42975 × 0.42975mm |
| Resolution | 3840(H) × 2160(V) |
| Refreshing Frequency | 60Hz |
| Display Color | 1.07B(10bit) |
| NTSC | 72% |
| Contrast Ratio | 5500:1 |
| Viewing Angle | 178° (H/V) |
| Back Light Unit | DLED |
| Brightness with glass(typ) | 450 nits |
| Operation Time | 7days × 16hours |
| Life Time | ≥ 50000 Hours |
Operating System
| System Version | Android 15 |
|---|---|
| RAM+ROM (Optional) | 8G + 128G |
| CPU | Octa-Core |
| GPU | Mali G52 MC1 |
Touch System
| Sensing Type | Infrared Recognition |
|---|---|
| Touch Tool | Passive Infraredpen |
| Accuracy | ±1.5mm |
| Touch Point | 40 Points touch |
| Minimum Object Size | 3mm |
| Writing Height | ≤2mm |
| Interpolation Resolution | 32768(W) × 32768(D) |
| Response Time | ≤10ms |
Audio
| Sound Channel | 2.0 |
|---|---|

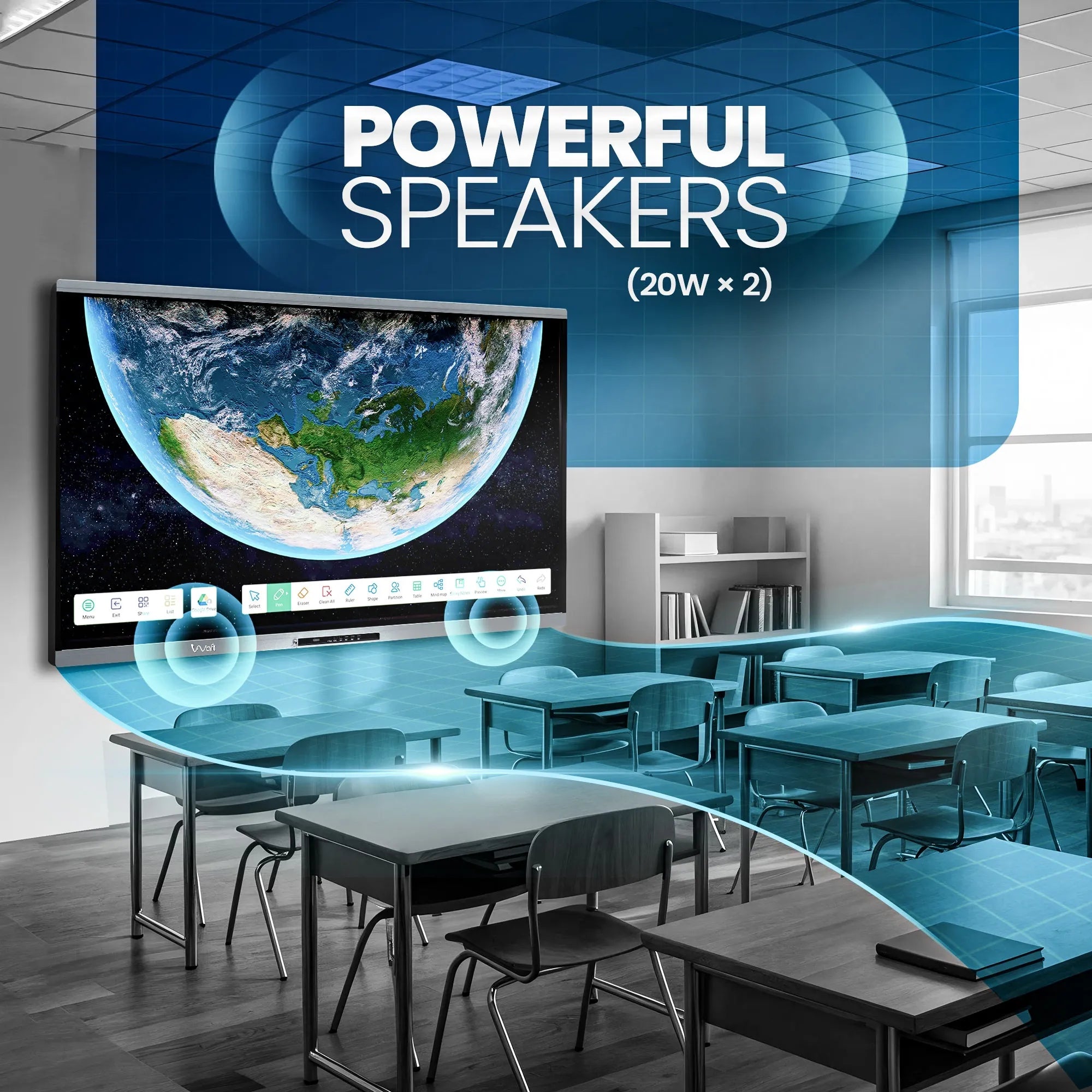

| Speaker Power | 2 x 20W |
| Sound pressure level | 84dB |
Bluetooth
| Version | 5.2 |
|---|---|
| Working Frequency | 2.4GHz |
| Working Distance | 0~10m |
Wi-Fi
| Version | 802.11a/b/g/n/ac/ax |
|---|---|
| Working Frequency | 2.4GHz/5GHz |
| Working Distance | 0~10m |
Power
| Power Requirements | 100-240V~50/60Hz3.5A |
|---|---|
| Typical Power | 215 W (Maximum backlight) |
| Max Power*[2] | 330W |

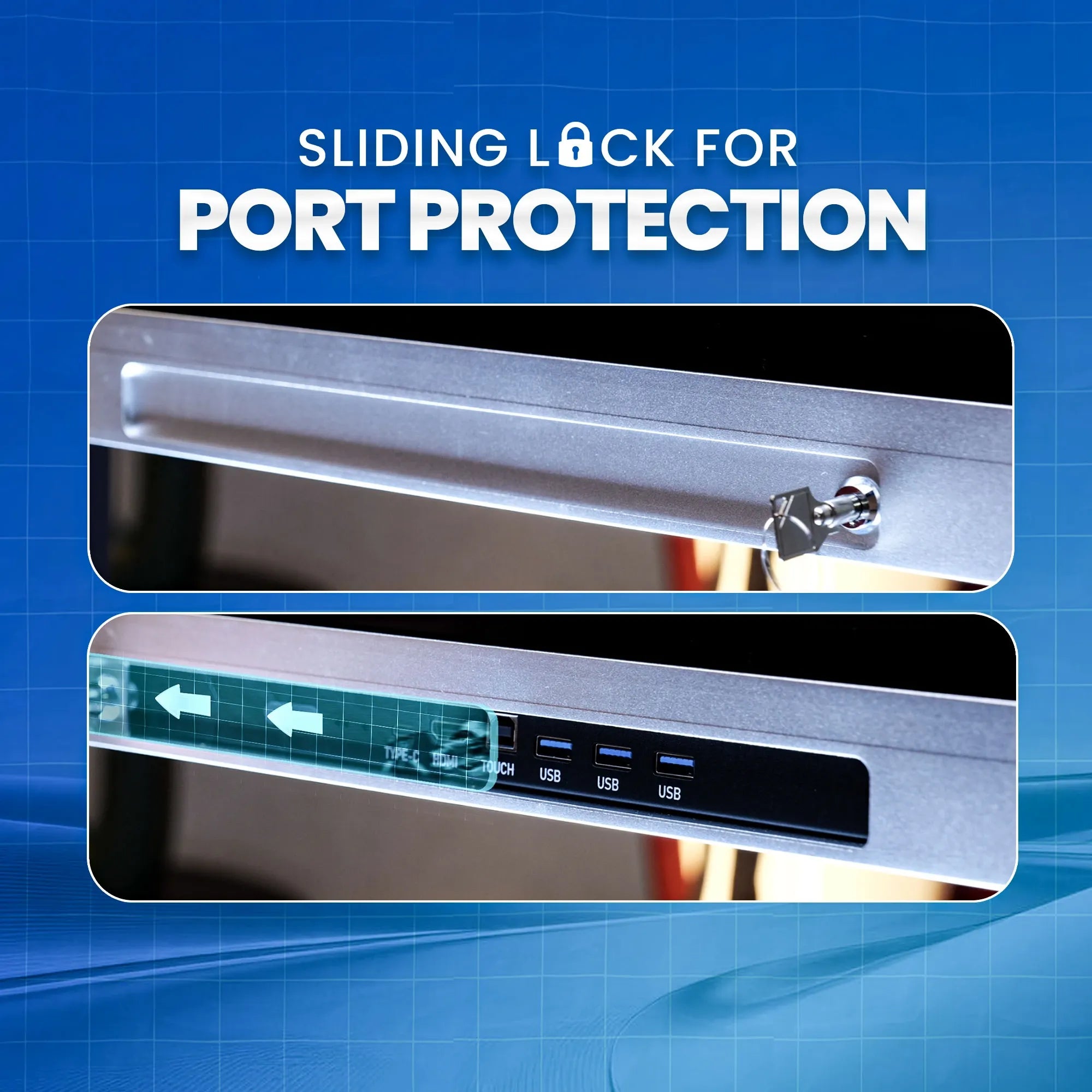

I/OPort
| HDMI IN = 3 | Upto 4K@60Hz, |
|---|---|
| USB 2.0 = 1 | For System Upgrades |
| USB 3.0 = 3 | Front * 2, Rear * 1, AII USB 3.0 Can Auto Switch to Current Channel |
