Technical Details
| Brand | BenQ |
|---|---|
| Screen size | 65, 75, 86 |
| Panel typ | IPS |
| Resolution | UHD 3840 x 2160 pixels |
| Active area |
65 = 1428.5 x 803.5 mm 75 = 1649.7 x 927.9 mm 86 = 1895.0 × 1096.0 mm |
| Response time | 8 ms |
| Aspect ratio | 16:9 |
| Orientation | Landscape |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 30,000:1 |
| Color depth | 10-bit |
| Color gamut |
65, 75 = 72% NTSC 86 = 68% NTSC |
| Panel brightness without glass (typical) | 450 nits |
| Panel brightness with glass (typical) | 400 nits |
| Backlight life (typical) | 50,000 hrs |
| Hardness | 9H tempered |
| Anti-glare | Yes |
| Germ-resistant technology | Availability dependent on region |
| Touch technology | Precision IR |
| Touch points | up to 40 |
| Touch response time | <5 ms |
| CPU | Arm Cortex-A73 x 4 + A53 x 4 |
| GPU | Arm Mali-G52 MP8 |
| Memory | Storage | 8 GB | 64/128GB (up to 1TB via micro SD card) |
| Operating system | Android 14 in 2025 Q3 |

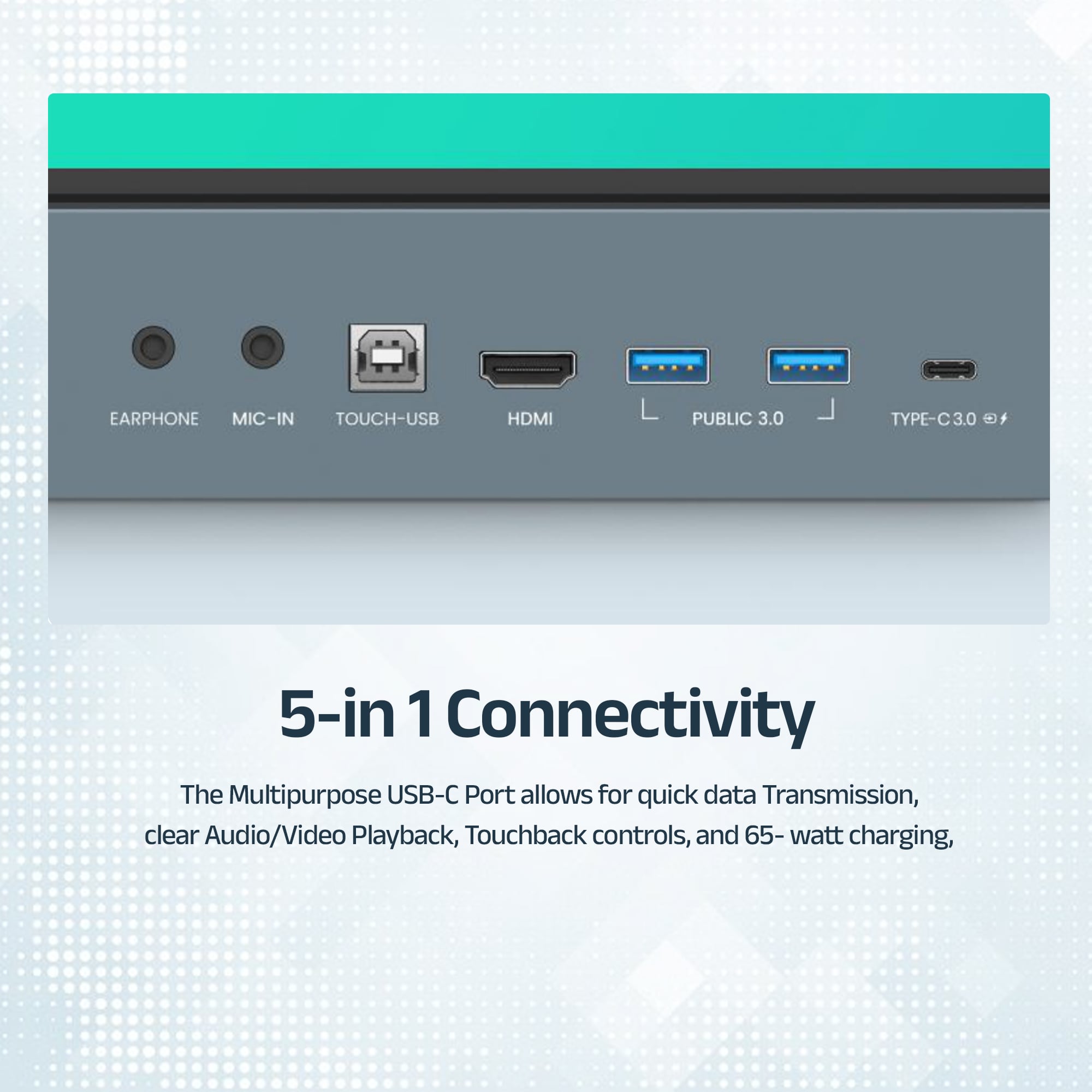

| USB-C | 1 x 3.0 (PD 65 W), 1 x 2.0 |
| USB Type-B (for touch) | 2 x 2.0 |
| USB Type-А | 2 x 2.0 + 2 x 3.0 |
| HDMI (in | out) | 3 x HDMI 2.0| 1 × HDMI 2.0 |
| DisplayPort | 1 x 1.2 |
| VGA in | 1 |
| Audio in | 1 x 3.5 mm microphone jack 1 x 3.5 mm audio jack (VGA) |
| Audio out | 1 x 3.5 mm earphone jack |
| S/PDIF out | 1 (optical) |
| RS-232 | 1 |
| OPS slot (for slot-in PC) | 1 |
| Ethernet | Gigabit Ethernet (10M/100M/1000M) |
| Wi-Fi | Availability dependent on region |
| Bluetooth® | Availability dependent on region |
| Ambient light sensor | Yes |
| IR sensor | Yes |
| Speaker | 2 x 20 W (max) |
| Energy Star | Yes |
| Power | AC 100-240V 50/60Hz |
| Standby power consumption | <0.5 W |
| Typical power consumption | 65 = 66.7 W, 75 = 73.9 W, 86 = 106.8 W |
| Operating temperature | 0°C~ 40°C | 32°F~ 104°F |
| Storage temperature | -10°C~60°C | 14°F~ 140°F |
| Storage humidity | 10%~80% RH non-condensing |
| Operating humidity | 20%~80% RH non-condensing |
| Whiteboarding | EZWrite 6.0 |
| Wireless screen sharing | InstaShare 2 |
| Account management | AMS |
| Device management | DMS |
| Quick access tool | Floating Tool |
| Broadcast system | X-Sign Broadcast |
| Cables | 1 x VGA (1.5 m | 4.9 ft), 1 x HDMI (1.5 m | 4.9 ft), 1 x USB-B for touch (3 m | 9.8 ft) |
| Wall mount | 1 |
| Pen | 2 |
| Remote control | 1 |
